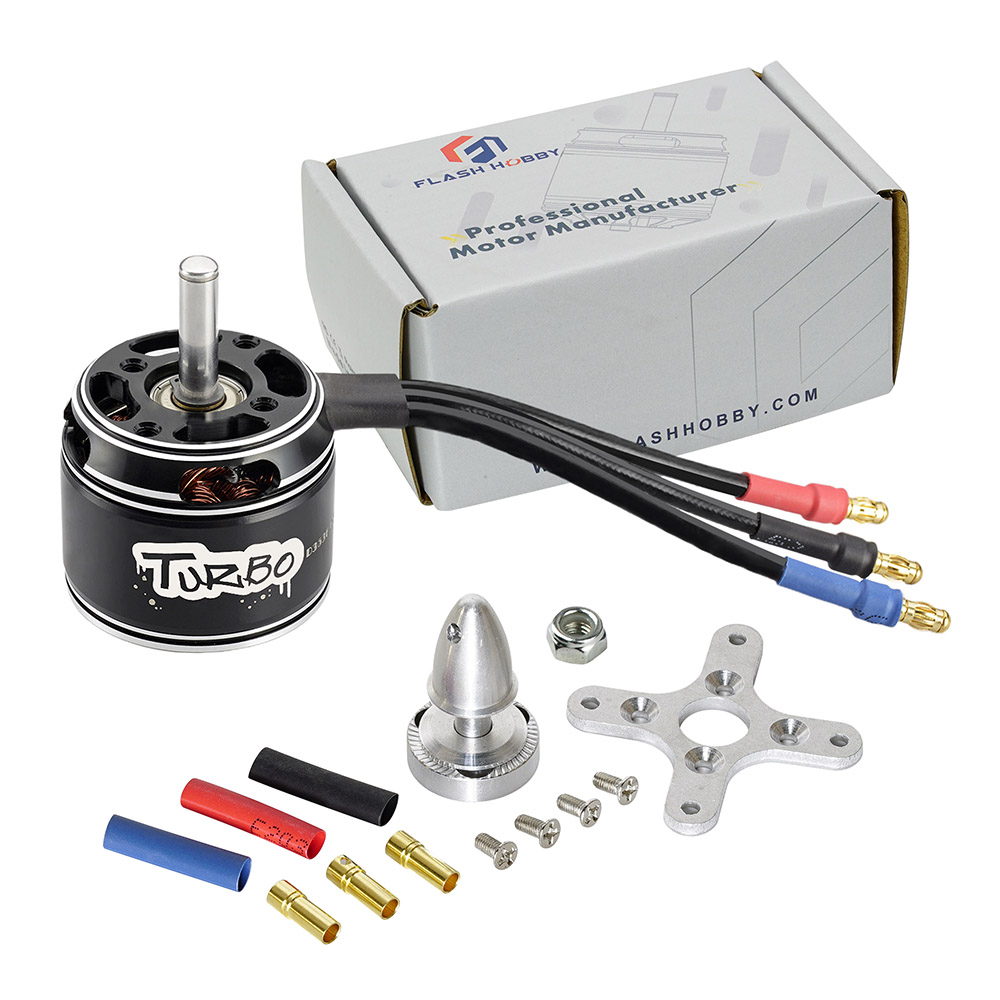

3536 Brushless Motor

48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
Welcome to buy 3536 Brushless Motor from us. Every request from customers is being replied within 24 hours.

Model:3536

Send Inquiry

Product Description

3536 Brushless Motor Application

3536 Brushless Motor for Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

3536 Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

3536 Brushless Motor Specification:

Weight: 105.8g(Including wires)
Motor Size: 35.3 x36mm
Shaft Size: 5.0*53.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P

KV value of 3536 Brushless Motor：

KV Value: 910KV, 1000KV,1250KV，1450KV or customed KV

KV: 910KV
Max watts: 347.7W
Max Current: 21.45A
No Load current: 1.2A/10V
Resistance: 66.7mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 1000KV
Max watts: 300.1W
Max Current: 24.44A
No Load current: 1.58A/10V
Resistance: 46.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1250KV
Max watts: 919.3W
Max Current: 57.31A
No Load current: 2.15A/10V
Resistance: 30.2mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1450KV
Max watts: 609.2W
Max Current: 51.45A
No Load current: 2.77A/10V
Resistance: 26.8mΩ
Battery: 3-4S Lipo
Suggested Prop: 11 inch prop

3536 Brushless Motor Test Datas:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
3536-910KV(EVO)	12.78	7x5	40%	3.33	42.6	239	6309	5.6	44.1℃
	12.76		50%	4.23	54.0	292	6938	5.4
	12.75		60%	5.07	64.6	336	7439	5.2
	12.73		70%	5.78	73.6	356	7875	4.8
	12.71		80%	6.77	86.0	413	8213	4.8
	12.68		90%	8.66	109.8	504	9064	4.6
	12.66		100%	9.85	124.7	543	9487	4.4
	12.81	APC8x6	40%	3.42	43.8	249	6432	5.7	45.2℃
	12.75		50%	4.45	56.7	313	7050	5.5
	12.61		60%	5.34	67.3	369	7541	5.5
	12.45		70%	6.17	76.8	405	7964	5.3
	12.42		80%	7.15	88.8	472	8375	5.3
	12.38		90%	9.54	118.1	580	9252	4.9
	12.32		100%	11.06	136.3	650	9613	4.8
	16.81	7x5	40%	4.78	80.4	369	7877	4.6	47.3℃
	16.74		50%	6.22	104.1	448	8654	4.3
	16.70		60%	7.57	126.4	523	9311	4.1
	16.56		70%	8.90	147.4	597	9825	4.1
	16.48		80%	10.81	178.1	689	10509	3.9
	16.44		90%	14.34	235.7	845	11604	3.6
	16.41		100%	16.40	269.1	917	12056	3.4
	16.72	APC8x6	40%	4.77	79.8	388	7795	4.9	48.3℃
	16.70		50%	6.40	106.9	489	8586	4.6
	16.66		60%	7.70	128.3	558	9210	4.3
	16.48		70%	9.13	150.5	641	9707	4.3
	16.41		80%	11.36	186.4	732	10408	3.9
	16.34		90%	15.29	249.8	883	11463	3.5
	16.21		100%	17.54	284.3	992	11871	3.5
	16.59	APC9x6	40%	5.35	88.8	520	6892	5.9	49.8℃
	16.55		50%	7.21	119.3	638	7618	5.3
	16.51		60%	8.94	147.6	744	8256	5.0
	16.47		70%	10.90	179.5	867	8811	4.8
	16.39		80%	14.21	232.9	1051	9700	4.5
	16.26		90%	19.10	310.6	1293	10615	4.2
	16.21		100%	21.45	347.7	1393	10997	4.0
3536-1000KV(EVO)	12.66	APC8x6	40%	4.61	58.4	323	7008	5.5	55.2℃
	12.60		50%	5.98	75.3	392	7739	5.2
	12.53		60%	7.28	91.2	452	8294	5.0
	12.50		70%	8.47	105.9	506	8745	4.8
	12.44		80%	10.18	126.6	582	9266	4.6
	12.40		90%	13.37	165.8	696	10230	4.2
	12.35		100%	15.44	190.7	768	10640	4.0
	12.87	APC10x5	40%	5.58	71.8	485	5855	6.8	56.4℃
	12.75		50%	7.65	97.5	596	6546	6.1
	12.70		60%	9.70	123.2	720	7099	5.8
	12.64		70%	12.11	153.1	837	7672	5.5
	12.56		80%	16.22	203.7	1010	8488	5.0
	12.31		90%	21.87	269.2	1254	9287	4.7
	12.28		100%	24.44	300.1	1332	9646	4.4
	16.44	7x5	40%	6.39	105.1	417	8597	4.0	52.1℃
	16.32		50%	8.39	136.9	520	9476	3.8
	16.30		60%	10.31	168.1	604	10183	3.6
	15.89		70%	12.23	194.3	670	10806	3.4
	15.67		80%	15.19	238.0	837	11638	3.5
	15.55		90%	20.07	312.1	1005	12837	3.2
	15.46		100%	22.52	348.2	1100	13350	3.2
3536-1250KV(EVO)	12.87	APC9x6	40%	8.29	106.7	580	7244	5.4	60.5℃
	12.82		50%	11.16	143.1	718	8043	5.0
	12.77		60%	13.92	177.8	831	8702	4.7
	12.72		70%	16.97	215.9	973	9301	4.5
	12.62		80%	22.19	280.0	1164	10224	4.2
	12.58		90%	29.53	371.5	1411	11156	3.8
	12.50		100%	33.48	418.5	1547	11552	3.7
	12.82	APC 10x5	40%	8.75	112.2	637	6691	5.7	63.1℃
	12.77		50%	12.04	153.8	812	7491	5.3
	12.70		60%	15.58	197.9	958	8096	4.8
	12.62		70%	19.61	247.5	1123	8792	4.5
	12.50		80%	26.48	331.0	1386	9621	4.2
	12.44		90%	34.87	433.8	1639	10450	3.8
	12.34		100%	39.41	486.3	1739	10812	3.6
	16.79	APC 10x5	40%	12.45	209.0	937	6691	4.5	69.6℃
	16.69		50%	17.56	293.1	1197	7491	4.1
	16.58		60%	23.14	383.7	1421	8096	3.7
	16.40		70%	30.35	497.7	1722	8792	3.5
	16.28		80%	40.64	661.6	2061	9621	3.1
	16.14		90%	52.79	852.0	2370	10450	2.8
	16.04		100%	57.31	919.3	2507	10812	2.7
3536-1450KV(EVO)	12.89	APC9x6	40%	11.14	143.6	682	7838	4.7	66.8℃
	12.82		50%	15.20	194.9	843	8711	4.3
	12.76		60%	19.14	244.2	997	9446	4.1
	12.68		70%	23.39	296.6	1150	10112	3.9
	12.53		80%	31.06	389.2	1402	11054	3.6
	12.34		90%	40.18	495.8	1669	11932	3.4
	12.23		100%	45.45	555.9	1788	12301	3.2
	12.68	APC11x7	40%	11.83	150.0	747	7177	5.0	65.6℃
	12.54		50%	16.31	204.5	940	7971	4.6
	12.37		60%	20.86	258.0	1089	8624	4.2
	12.28		70%	26.79	329.0	1314	9296	4.0
	12.14		80%	35.38	429.5	1510	10184	3.5
	11.86		90%	45.13	535.2	1787	10876	3.3
	11.84		100%	51.45	609.2	1884	11260	3.1

Connection:

FAQ

1、What is the MOQ of the regular item?

A: There isn’t MOQ limited for the stock item. But if need to change the color or design, we will set up the MOQ as per the different request.

2、If the order quantity is large, if can apply the discount from dealer price?

A: Yes, we will offer our best offer as per the different request.

3、If need change anything when the order confirmed, pls how we can do?

A: If you have request, pls contact with us within 2 days when the order was confirmed, otherwise, it can’t be cancelled or change any design of motor.

4、How long the delivery time?

A: It is about 7 days when the order is confirmed for the regular item.

5、What is the leadtime of OEM/OMD order?

A: Normally it is 15-30 days.

6、What is the MOQ of OEM/OMD order?

A: Single color Motor MOQ-200PCS

Multicolor Motor MOQ-1000PCS
