5210 Brushless Motor
5210 Brushless DC Motor

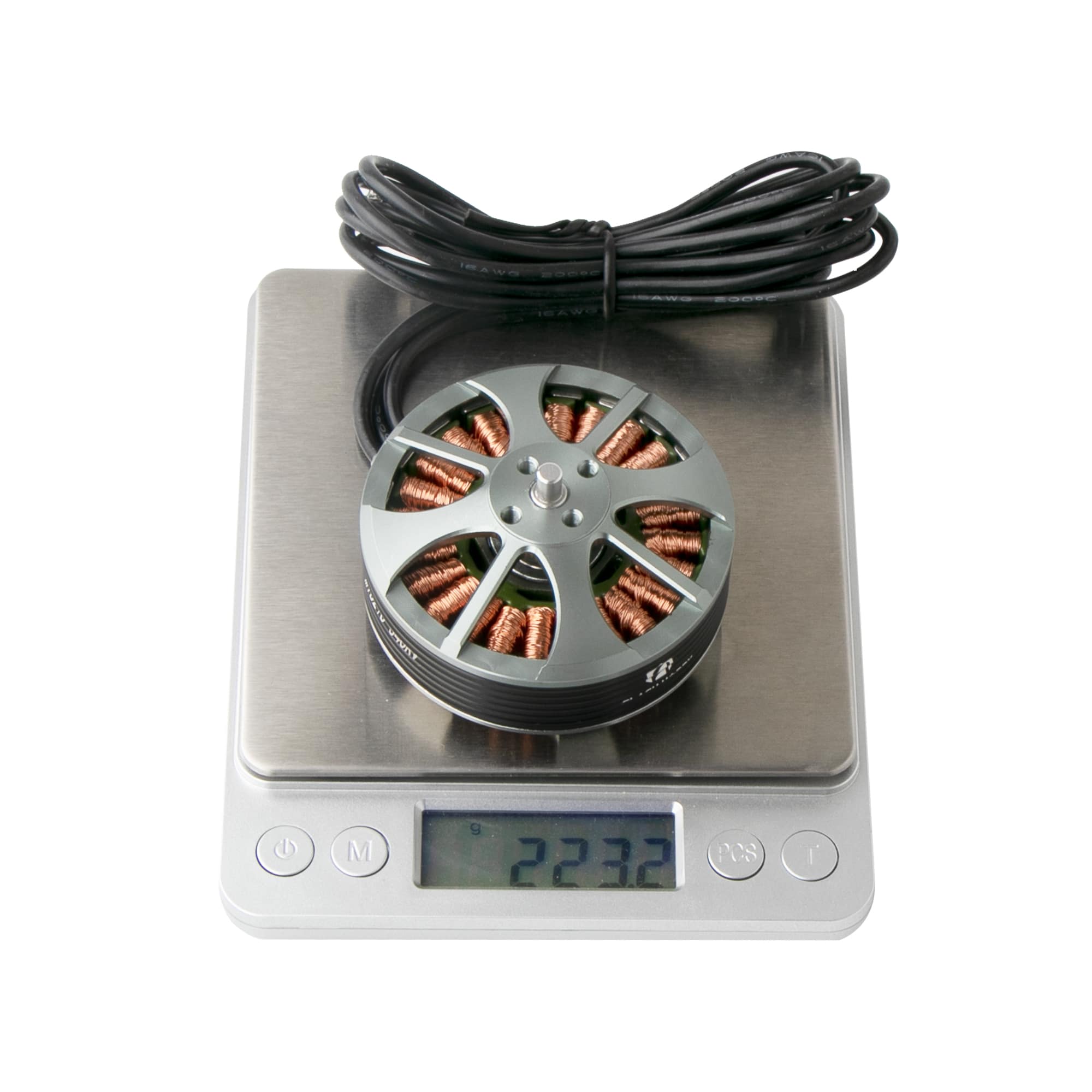

●Weight: 222.0g (including the cables)
●Motor Size: 60 x 30mm
●Shaft Diameter: 5.0mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 24N22P
●Motor Cable: 18#AWG 220mm
●KV Value: 340KVor customed KV
●Recommend: 17~20" inch prop application
Model:MT5210
Send Inquiry
Product Description
5210 Brushless Motor
5210 MultiRotor Motor Features:
48SH Level Magnet
Precision Balanced Rotor Test
12N14P High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
●Weight: 222.0g (including the cables)
●Motor Size: 60 x 30mm
●Shaft Diameter: 5.0mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 24N22P
●Motor Cable: 18#AWG 220mm
●KV Value: 340KVor customed KV
●Recommend: 17~20" inch prop application
MT5210-340KV Motor Specification
Max pull：3750g
Volts：24.0V(6S)
Suggested ESC: 40A~50A
Maximum Power:734.4W
| MT5210-340KV | |||||||
| Prop（inch） | Throttle（%） | Voltages（V） | Load Current（A） | Power(W) | Pull(g) | Efficiency(g/W) | Temperature(in full throttle load 1min) |
| CF1555TM | 50% | 24.0 | 3.6 | 86.4 | 870 | 10.07 | 40℃ |
| 54% | 24.0 | 5 | 120.0 | 1100 | 9.17 | ||
| 57% | 24.0 | 6 | 144.0 | 1260 | 8.75 | ||
| 62% | 24.0 | 8 | 192.0 | 1530 | 7.97 | ||
| 66% | 24.0 | 10 | 240.0 | 1800 | 7.50 | ||
| 70% | 24.0 | 12 | 288.0 | 2050 | 7.12 | ||
| 74% | 24.0 | 14 | 336.0 | 2280 | 6.79 | ||
| 78% | 24.0 | 16 | 384.0 | 2510 | 6.54 | ||
| 81% | 24.0 | 18 | 432.0 | 2740 | 6.34 | ||
| 100% | 24.0 | 20 | 480.0 | 2920 | 6.08 | ||
| CF1755TM | 50% | 24.0 | 5.3 | 127.2 | 1230 | 9.67 | 61℃ |
| 55% | 24.0 | 8 | 192.0 | 1640 | 8.54 | ||
| 59% | 24.0 | 10 | 240.0 | 1910 | 7.96 | ||
| 62% | 24.0 | 12 | 288.0 | 2150 | 7.47 | ||
| 65% | 24.0 | 14 | 336.0 | 2410 | 7.17 | ||
| 68% | 24.0 | 16 | 384.0 | 2620 | 6.82 | ||
| 71% | 24.0 | 18 | 432.0 | 2830 | 6.55 | ||
| 74% | 24.0 | 20 | 480.0 | 3030 | 6.31 | ||
| 77% | 24.0 | 22 | 528.0 | 3260 | 6.17 | ||
| 79% | 24.0 | 24 | 576.0 | 3420 | 5.94 | ||
| 82% | 24.0 | 26 | 624.0 | 3610 | 5.79 | ||
| 100% | 24.0 | 28.3 | 679.2 | 3830 | 5.64 | ||
| CF1855TM | 50% | 24.0 | 6.8 | 163.2 | 1510 | 9.25 | 73℃ |
| 52% | 24.0 | 8 | 192.0 | 1720 | 8.96 | ||
| 55% | 24.0 | 10 | 240.0 | 2040 | 8.50 | ||
| 58% | 24.0 | 12 | 288.0 | 2210 | 7.67 | ||
| 61% | 24.0 | 14 | 336.0 | 2480 | 7.38 | ||
| 63% | 24.0 | 16 | 384.0 | 2670 | 6.95 | ||
| 65% | 24.0 | 18 | 432.0 | 2910 | 6.74 | ||
| 68% | 24.0 | 20 | 480.0 | 3120 | 6.50 | ||
| 70% | 24.0 | 22 | 528.0 | 3330 | 6.31 | ||
| 73% | 24.0 | 24 | 576.0 | 3510 | 6.09 | ||
| 75% | 24.0 | 26 | 624.0 | 3660 | 5.87 | ||
| 78% | 24.0 | 28 | 672.0 | 3840 | 5.71 | ||
| 80% | 24.0 | 30 | 720.0 | 3950 | 5.49 | ||
| 82% | 24.0 | 32 | 768.0 | 4070 | 5.30 | ||
| 100% | 24.0 | 34.2 | 820.8 | 4180 | 5.09 | ||
| CF2055TM | 50% | 24.0 | 7.1 | 170.4 | 1600 | 9.39 | 78℃ |
| 52% | 24.0 | 8 | 192.0 | 1750 | 9.11 | ||
| 55% | 24.0 | 10 | 240.0 | 2070 | 8.63 | ||
| 57% | 24.0 | 12 | 288.0 | 2250 | 7.81 | ||
| 60% | 24.0 | 14 | 336.0 | 2530 | 7.53 | ||
| 62% | 24.0 | 16 | 384.0 | 2730 | 7.11 | ||
| 64% | 24.0 | 18 | 432.0 | 2980 | 6.90 | ||
| 66% | 24.0 | 20 | 480.0 | 3200 | 6.67 | ||
| 69% | 24.0 | 22 | 528.0 | 3410 | 6.46 | ||
| 71% | 24.0 | 24 | 576.0 | 3590 | 6.23 | ||
| 73% | 24.0 | 26 | 624.0 | 3710 | 5.95 | ||
| 76% | 24.0 | 28 | 672.0 | 3900 | 5.80 | ||
| 78% | 24.0 | 30 | 720.0 | 4090 | 5.68 | ||
| 80% | 24.0 | 32 | 768.0 | 4210 | 5.48 | ||
| 100% | 24.0 | 36.8 | 883.2 | 4620 | 5.23 | ||
|
