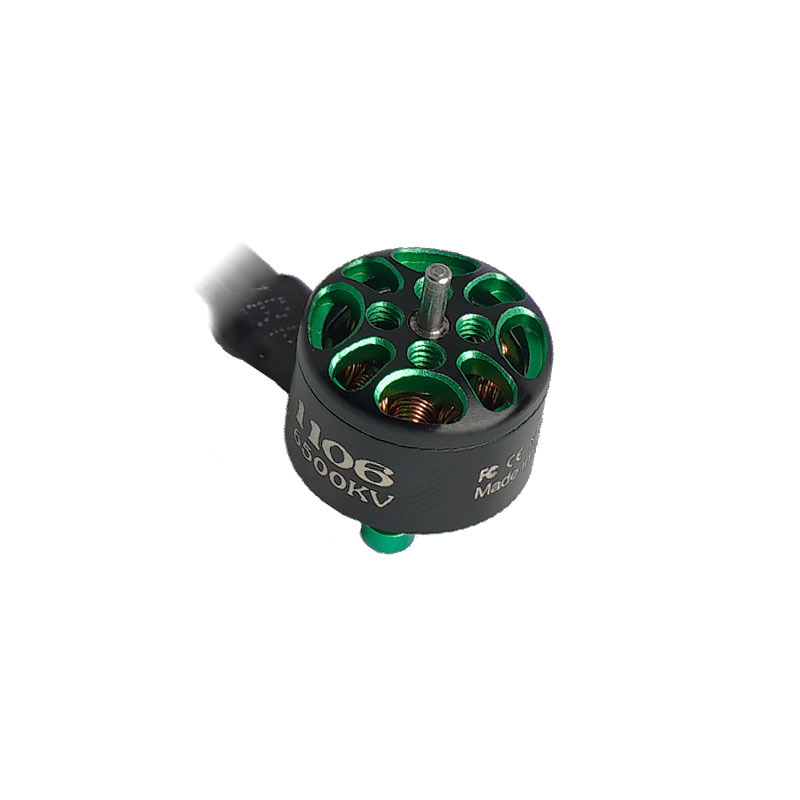

A1106 Brushless DC Motor

Flash Hobby is a professional China A1106 Brushless DC Motor manufacturer and supplier, if you are looking for the best A1106 Brushless DC Motor with low price, consult us now!
●Weight: 6.2g (including the cables)
●Motor Size: 14.4×12.8mm
●Stator Diameter: 12mm
●Stator Height:4mm
●Shaft Diameter: 2.0mm
●Motor Mount: 9*9mm(M2*4)
●Configuration: 9N12P
●Motor Cable: 26#AWG 115mm
●NSK Bearing
●7075-T6 Aluminum bell
●Multicolor color design
●0.15mm Silicon steel sheet from Kawasaki, Japan
●KV Value: 4500KV, 6500KV or customed KV
●Recommend: 2~3 inch prop application

Send Inquiry

Product Description

Buy Hot A1106 Brushless DC Motor made in China. Flash Hobby is a A1106 Brushless DC Motor manufacturer and supplier in China.

A1106-4500KV Motor Specification

Max pull：213g

Volts：12V(3S)

Suggested ESC: 10A~20A

Maximum Power：71W

Suggested Prop: 3 inch prop

A1106-6500KV Motor Specification

Max pull：261g

Volts：12V(3S)

Suggested ESC: 10A~20A

Maximum Power：163W

Suggested Prop: 2 inch prop

Working Temperature Range：-0℃~+80℃<br>

Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US<br>

Motor Type: Outrunner Brushless Motor,Three-phase Motor<br>

MOTOR Drawing:

Test Datas:

ltem NO.	Volts(V)	Prop	Throttle(%)	Current(A)	Power(W)	Thrust (g)	Efficiency (g/W)	Operating temperature(℃)
A1106 4500kv	7.99	GF3028 3R	50%	0.30	2.40	37.00	15.44	55℃
	7.99		60%	0.60	4.79	65.00	13.56
	7.94		70%	1.08	8.58	90.00	10.50
	7.88		80%	2.29	18.05	112.00	6.21
	7.98		90%	3.31	26.41	130.00	4.92
	7.88		100%	3.37	26.56	130.00	4.90
A1106 4500kv	11.99	GF3028 3R	50%	0.34	4.08	101.00	24.78	60℃
	12.01		60%	1.75	21.02	136.00	6.47
	11.96		70%	3.24	38.75	170.00	4.39
	11.90		80%	4.99	59.38	198.00	3.33
	11.90		90%	6.15	73.19	218.00	2.98
	11.93		100%	5.95	70.98	213.00	3.00
A1106 6500KV	8.00	GF2040 3R	50%	1.82	14.56	32.00	2.20	39.4℃
			60%	2.70	21.60	47.00	2.18
			70%	3.64	29.12	63.00	2.16
			80%	4.99	39.92	80.00	2.00
			90%	5.75	46.00	95.00	2.07
			100%	5.95	47.60	96.00	2.02
	8.00	GF2540 3R	50%	2.56	20.48	65.00	3.17	44.3℃
			60%	3.78	30.24	87.00	2.88
			70%	5.13	41.04	111.00	2.70
			80%	6.76	54.08	141.00	2.61
			90%	8.35	66.80	162.00	2.43
			100%	8.51	68.08	163.00	2.39
	8.00	GF3028 3R	50%	3.10	24.80	85.00	3.43	50.5℃
			60%	4.52	36.16	113.00	3.13
			70%	6.08	48.64	145.00	2.98
			80%	8.31	66.48	176.00	2.65
			90%	10.24	81.92	201.00	2.45
			100%	10.41	83.28	203.00	2.44
	12.00	GF2040 3R	50%	3.10	37.20	64.00	1.72	48.8℃
			60%	4.72	56.64	93.00	1.64
			70%	5.81	69.72	121.00	1.74
			80%	8.24	98.88	152.00	1.54
			90%	10.02	120.24	176.00	1.46
			100%	10.27	123.24	176.00	1.43
	12.00	GF2540 3R	50%	4.32	51.84	113.00	2.18	71.4℃
			60%	5.95	71.40	151.00	2.11
			70%	8.24	98.88	189.00	1.91
			80%	11.22	134.64	232.00	1.72
			90%	13.42	161.04	254.00	1.58
			100%	13.92	163.00	261.00	1.60

Product Detail:

Connected instructions

Packed:

Flash Hobby motor*1pcs, M2X5mm*4, M2X7mm*8

FAQ

1、What is the MOQ of the regular item?

A: There isn’t MOQ limited for the stock item. But if need to change the color or design, we will set up the MOQ as per the different request.

2、If the order quantity is large, if can apply the discount from dealer price?

A: Yes, we will offer our best offer as per the different request.

3、If need change anything when the order confirmed, pls how we can do?

A: If you have request, pls contact with us within 2 days when the order was confirmed, otherwise, it can’t be cancelled or change any design of motor.

4、How long the delivery time?

A: It is about 7 days when the order is confirmed for the regular item.

5、What is the leadtime of OEM/OMD order?

A: Normally it is 15-30 days.

6、What is the MOQ of OEM/OMD order?

A: Single color Motor MOQ-200PCS

Multicolor Motor MOQ-1000PCS
