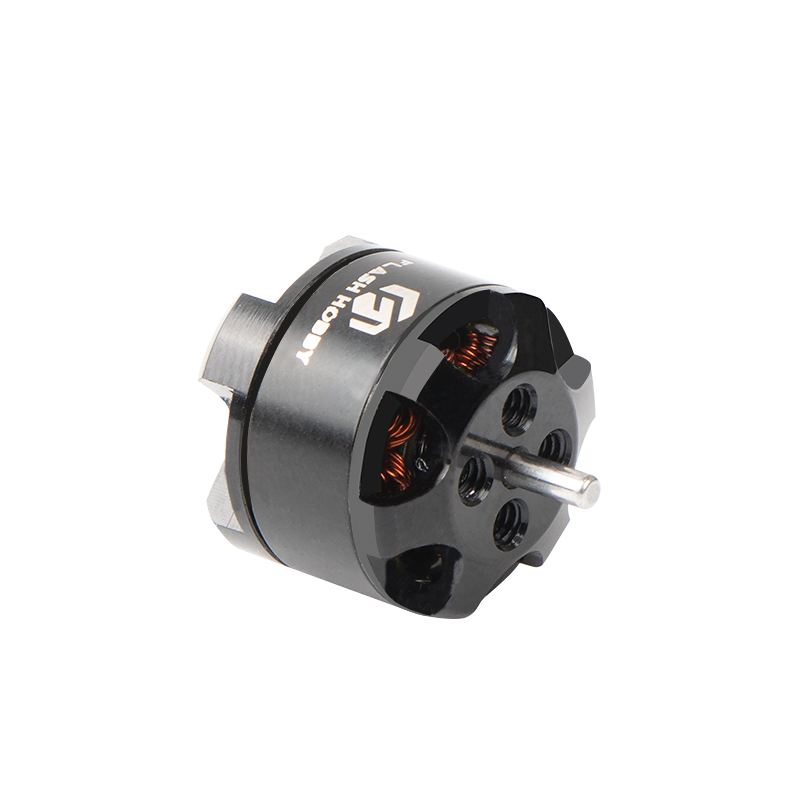

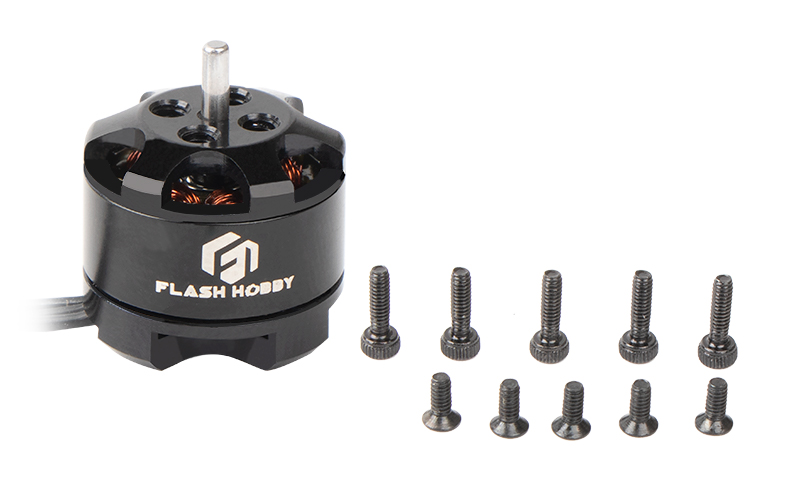

BE 1104 Brushless DC Motor

You are welcomed to come to Flash Hobby factory to buy the latest selling, low price, and high-quality BE 1104 Brushless DC Motor. We look forward to cooperating with you.
●Weight: 6g (including the cables)
●Motor Size:14 x 12.5mm
●Stator Diameter: 11mm
●Stator Height: 4mm
●Shaft Diameter: 1.5mm
●Mounting Screw Pattern: 9x9mm(M2*4)
●Configuration:9N12P
●Motor Cable:3PIN Wire 150mm
●NSK Bearing
●6061 Aluminum bell
●KV Value: 4000KV, 5400KV, 6500KV, 7500KV, 10000KV or customed KV
●Recommend: 2~3 inch prop application

Send Inquiry

Product Description

Buy Discount BE 1104 Brushless DC Motor with Free Sample made in China. Flash Hobby is a BE 1104 Brushless DC Motor manufacturer and supplier in China.

BE 1104-4000KV Motor Specification

Max pull：118g(2S/GF3020)

Input Voltage：DC7.4-11.1V(1-2S)

Current: 3.5A

Suggested ESC: 7A~12A

Maximum Power：25.9W

Suggested Prop: 2~3 inch prop

BE 1104-5400KV Motor Specification

Max pull：170g(2S/GF3020)

Input Voltage：DC7.4-11.1V(1-2S)

Current: 5.4A

Suggested ESC: 7A~12A

Maximum Power：59.9W

Suggested Prop: 2~3 inch prop

BE 1104-6500KV Motor Specification

Max pull：200g(2S/GF3020)

Input Voltage：DC7.4-11.10V(1-2S)

Current: 9.0A

Suggested ESC: 7A~12A

Maximum Power：99.9W

Suggested Prop: 2~3 inch prop

BE 1104-7500KV Motor Specification

Max pull：220g(2S/GF3020)

Input Voltage：DC7.4-11.10V(1-2S)

Current: 11.8A

Suggested ESC: 7A~12A

Maximum Power：131W

Suggested Prop: 2~3 inch prop

BE 1104-10000KV Motor Specification

Max pull：227g(2S/GF3020)

Input Voltage：DC7.4-11.10V(1-2S)

Current: 15.3A

Suggested ESC: 7A~12A

Maximum Power：169.8W

Suggested Prop: 2~3 inch prop

1104 Motor Drawing:

1104 Test Datas:

Item No.		NO LOAD		ON LOAD			LOAD TYPE
	VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	Battery/prop
	V	A	rpm	A	g	W	Battery/prop
BE1104 4000KV	7.4	0.4	29600	0.6	20	4.4	LiPoх2/3020
				1.2	40	8.9
				2.1	64	15.5
	11.1	0.5	44400	0.9	40	10.0	LiPoх2/3020
				2.1	80	23.3
				3.5	118	38.9
BE1104 5400KV	7.4	0.4	7.4	1	40	7.4	LiPoх2/3020
				2.5	80	18.5
				4.2	114	31.1
				1	40	7.4	LiPoх2/3020
				2.4	80	17.8
				3.5	106	25.9
	11.1	0.5	11.1	1.3	60	14.4	LiPoх3/3020
				3.4	120	37.7
				6.5	184	72.2
				1.3	60	14.4	LiPoх3/3020
				3.3	120	36.6
				5.4	170	59.9
BE1104 6500KV	7.4	0.7	48100	1.6	50	11.8	LiPoх2/3020R
				3.8	100	28.1
				6.4	147	47.4
	11.1	0.8	72150	1.9	70	21.1	LiPoх3/3020R
				4.9	140	54.4
				9.0	200	99.9
BE1104 7000KV	7.4	0.5	55500	1.7	50	12.6	LiPoх2/3020R
				4.5	100	33.3
				8.5	160	62.9
	11.1	0.6	83250	2.3	70	25.5	LiPoх3/3020R
				5.4	140	59.9
				11.8	220	131.0
BE1104 10000KV	7.4	1.2	350.76	4.1	70	30.3	LiPoх2/3020
				9.1	140	67.3
				15.2	190	112.5
	11.1	1.3	526.14	5.6	90	62.2	LiPoх3/3020
				12.7	180	141.0
				20.0	280	222.0
	11.1	0.7	526.14	3.5	70	38.9	LiPoх3/2030х3
				8.9	140	98.8
				15.3	227	169.8

Product Details:

Connected instruction:

FAQ

1、What is the MOQ of the regular item?

A: There isn’t MOQ limited for the stock item. But if need to change the color or design, we will set up the MOQ as per the different request.

2、If the order quantity is large, if can apply the discount from dealer price?

A: Yes, we will offer our best offer as per the different request.

3、If need change anything when the order confirmed, pls how we can do?

A: If you have request, pls contact with us within 2 days when the order was confirmed, otherwise, it can’t be cancelled or change any design of motor.

4、How long the delivery time?

A: It is about 7 days when the order is confirmed for the regular item.

5、What is the leadtime of OEM/OMD order?

A: Normally it is 15-30 days.

6、What is the MOQ of OEM/OMD order?

A: Single color Motor MOQ-200PCS

Multicolor Motor MOQ-1000PCS
