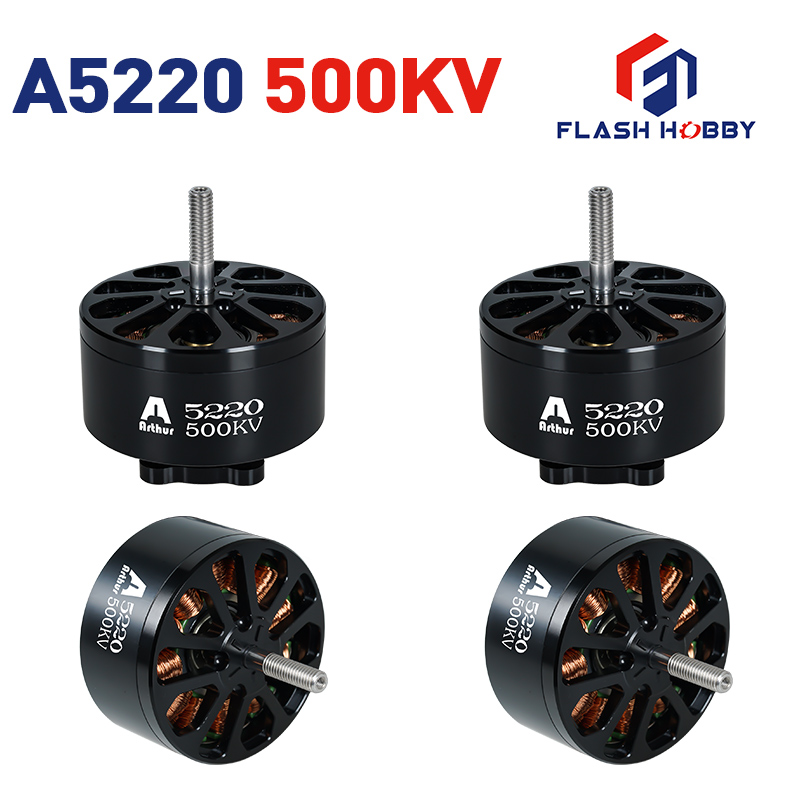

A5220 Brushless Motor
China A5220 Brushless Motor Factory Directly Supply. Flash Hobby is a large-scale A5220 Brushless Motor manufacturer and supplier in China.
●Weight: 412g (including the cables)
●Motor Size: 60.8X46mm
●Shaft Diameter: 6.0mm
●Motor Mount: 30*30mm(4-M4)
●Configuration: 12N14P
●Motor Cable: 16AWG-600MM
●KV Value: 350KV and 500KV or customed KV
●Recommend: 13~15" inch prop application
●Weight: 412g (including the cables)
●Motor Size: 60.8X46mm
●Shaft Diameter: 6.0mm
●Motor Mount: 30*30mm(4-M4)
●Configuration: 12N14P
●Motor Cable: 16AWG-600MM
●KV Value: 350KV and 500KV or customed KV
●Recommend: 13~15" inch prop application
Model:A5220
Send Inquiry
Product Description
The following is an introduction to A5220 Brushless Motor, I hope to help you better understand A5220 Brushless Motor. Welcome new and old customers to continue to cooperate with Flash Hobby to create a better future together!

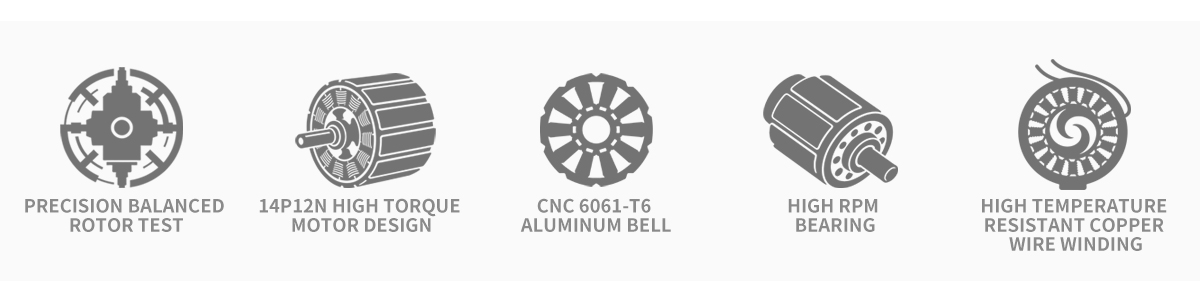

Features:
52H Level Magnet
Precision Balanced Rotor Test

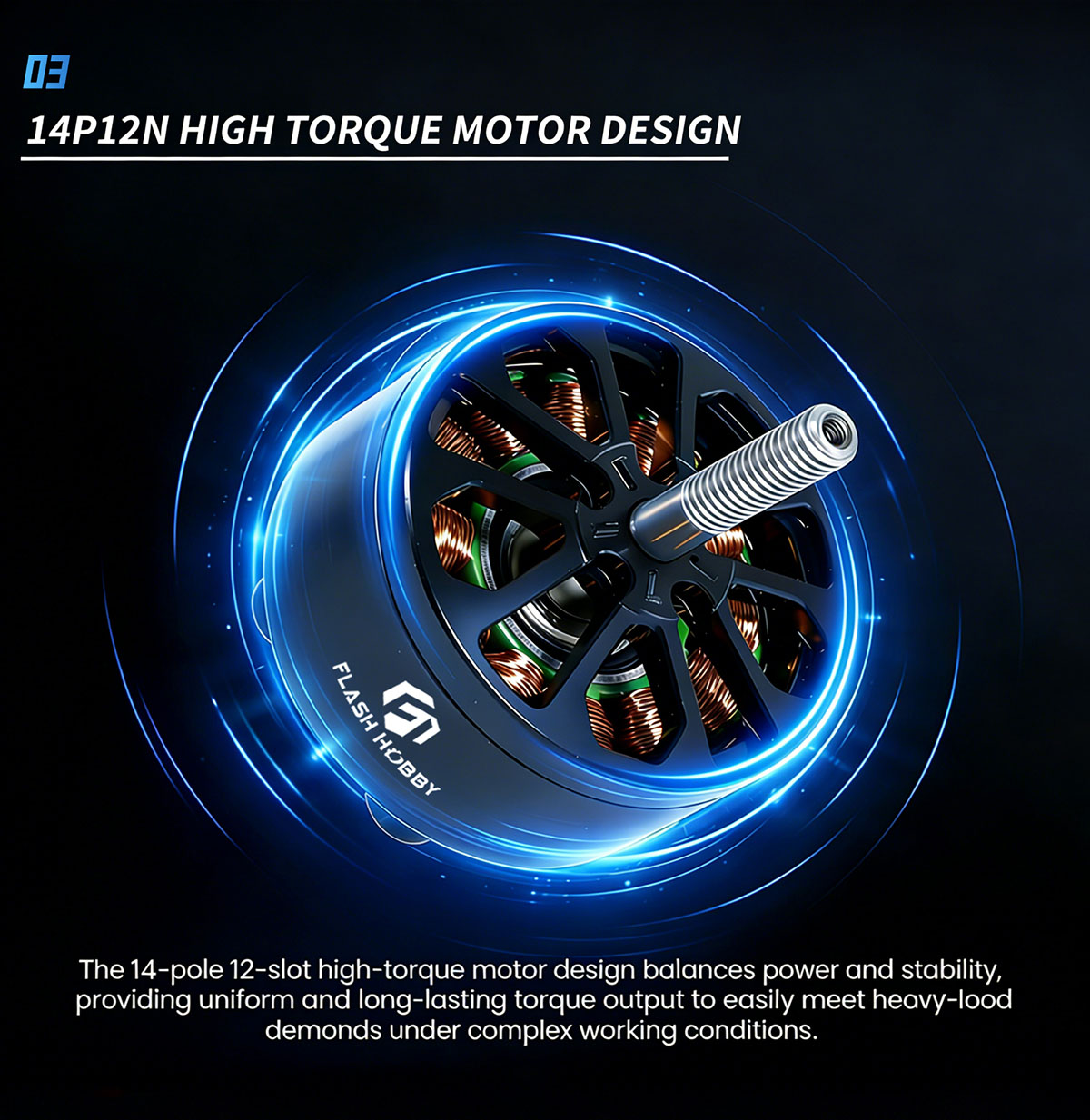

14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell

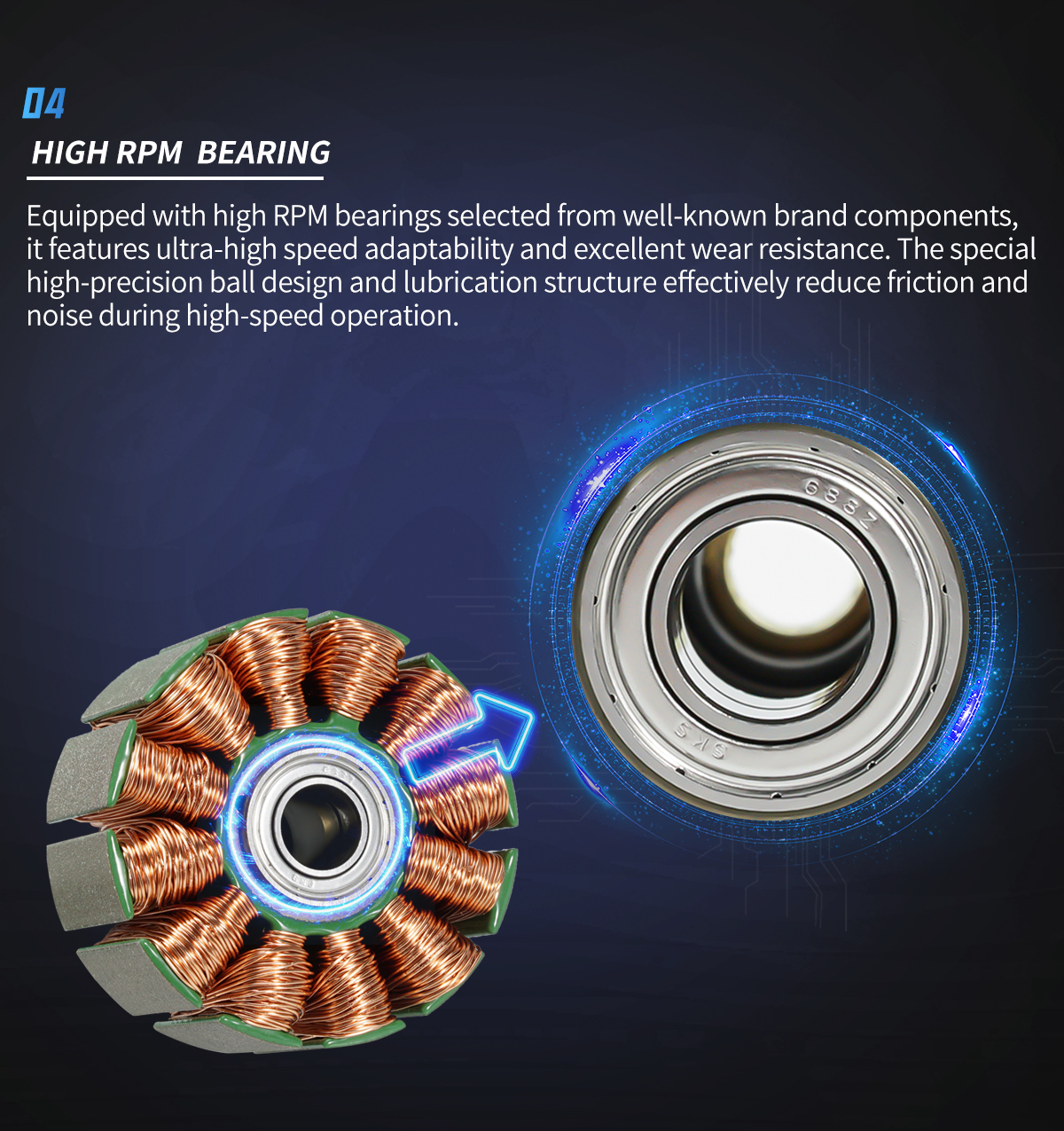

High RPM Imported(NSK/NMB) Bearing

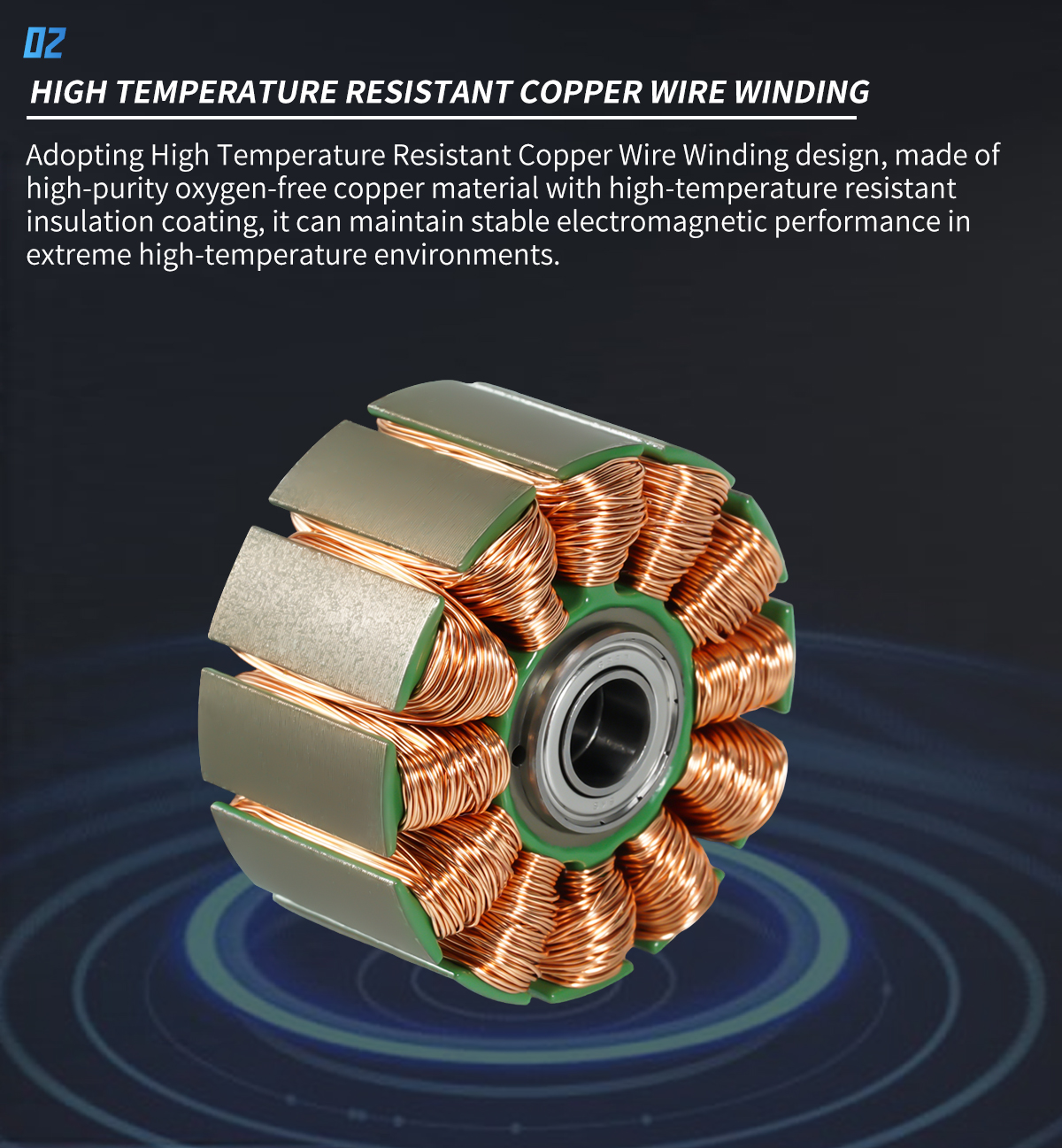

High Temperature Resistant Copper Wire Winding

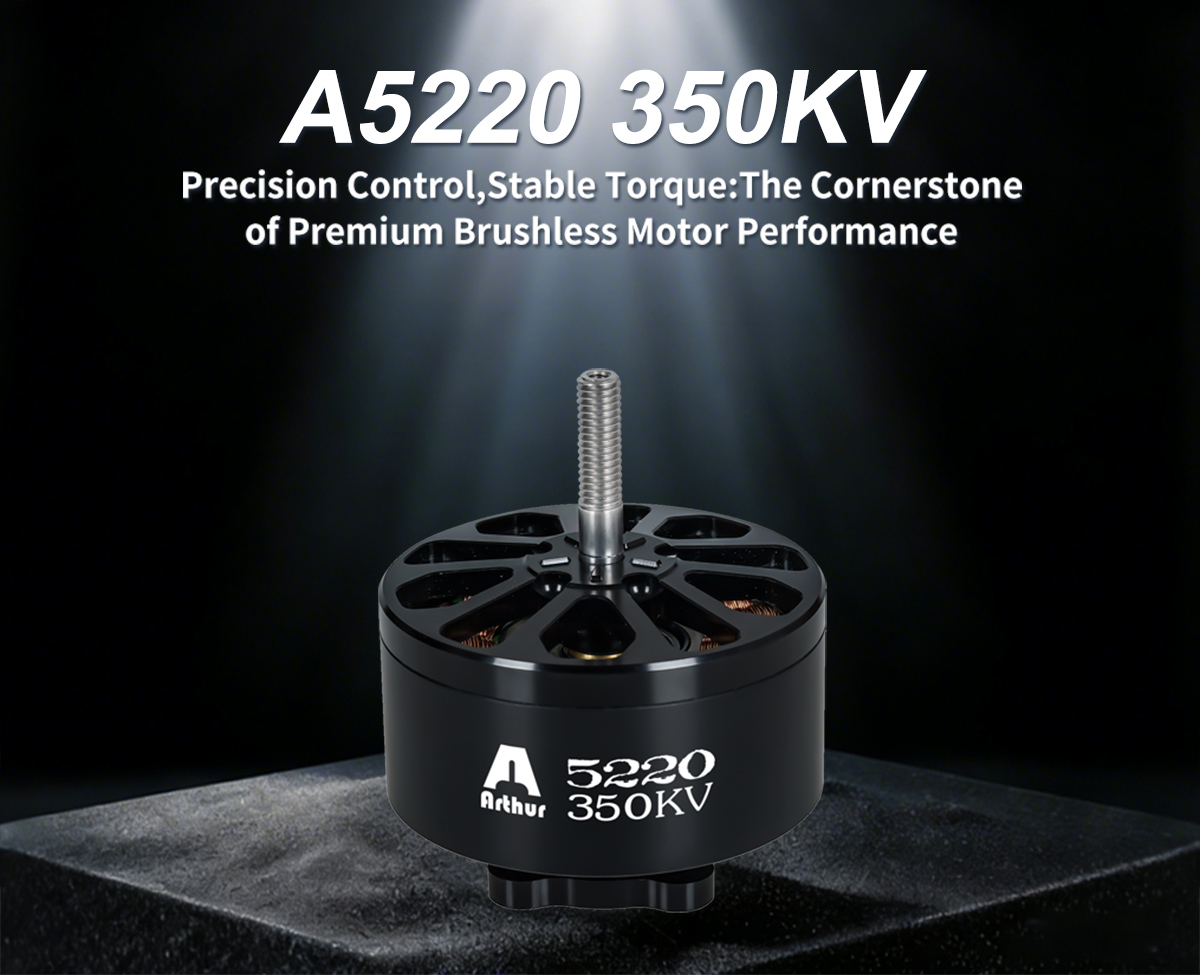

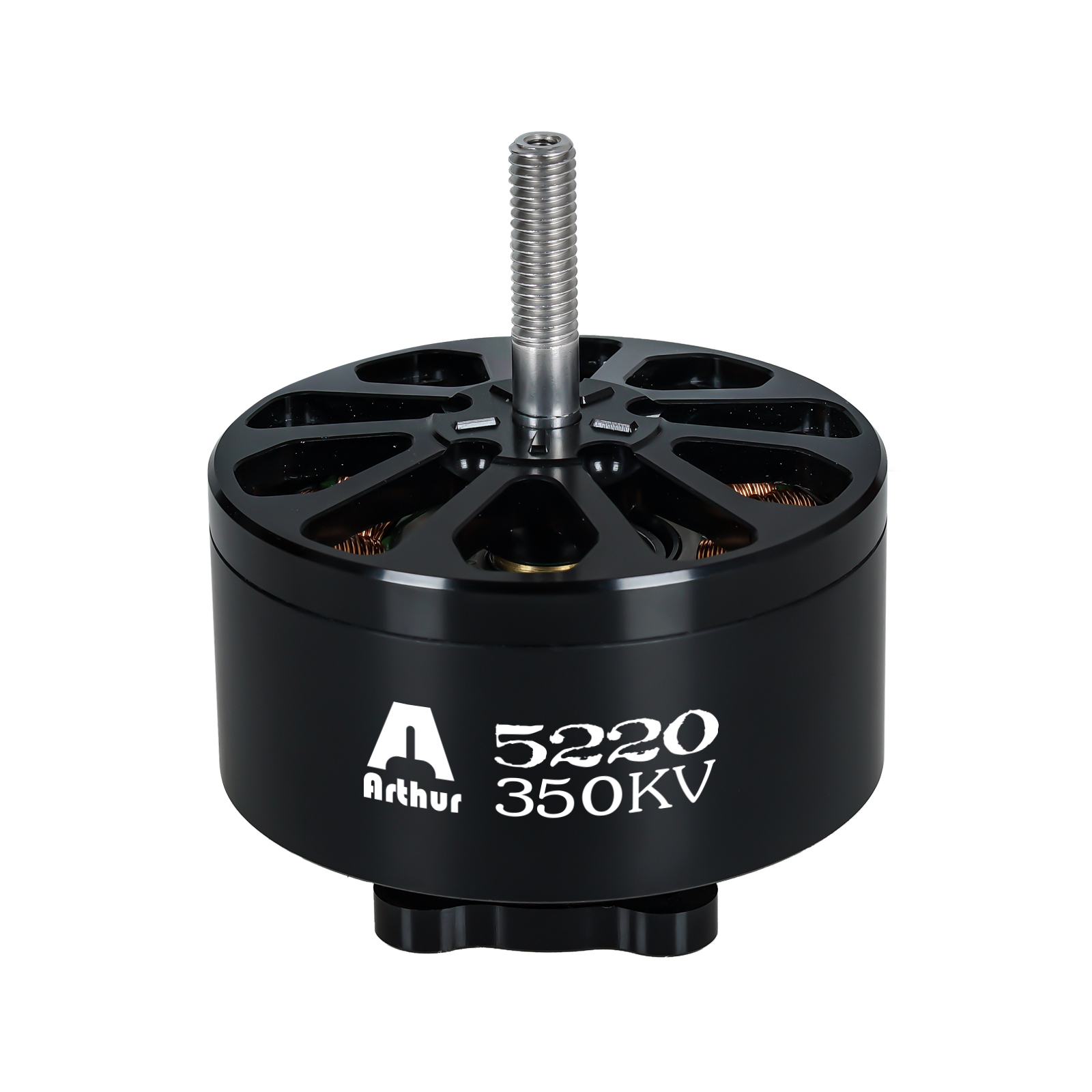

A5220KV 350KV Motor Specification
Max pull：8193g
Volts：33.6V(8S)
Suggested ESC: 60A~80A
Maximum Power：2392.2W
Suggested Prop: 13~15 inch prop
A5220KV 500KV Motor Specification
Max pull：7574g
Volts：25.2V(8S)
Suggested ESC: 80A~100A
Maximum Power：2399.9W
Suggested Prop: 13~15 inch prop
